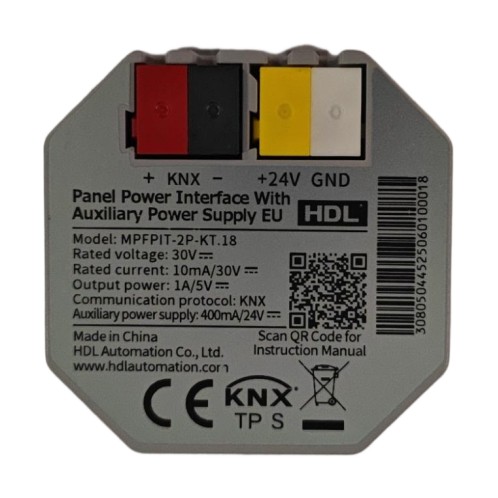

HDL Panel Power Interface for TILE Xelent Thermostat Series

• HDL KNX Panel Power Interface EU is used with KNX thermostat panels and display panels to provide working voltage and communication signals for the panel

Specifications

Basic Parameters

• Working voltage: 21~30V DC
• Communication: KNX

External Environment

• Working temperature: -5℃~45℃
• Working relative humidity: ≤90%
• Storage temperature: -20℃~60℃
• Storage relative humidity: ≤93%

Specifications

• Dimensions: 51.2×51.2×23.1 (mm)
• Net weight: 77.5g
• Housing material: PC
• Installation: Wall box
• Protection rating (Compliant with EN 60529): IP20
