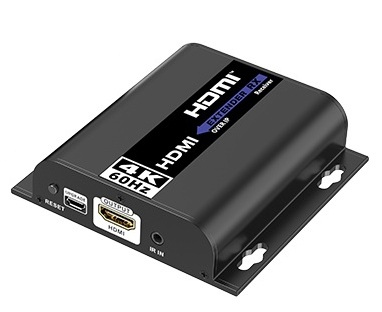

Lenkeng HDMI Matrix over IP 4K IR 120m Receiver LKV483-M5.0-RX

The Lenkeng LKV483-M5.0-RX is the matching HDMI Receiver (RX) unit designed to decode and output audio/video signals from the LKV483-M5.0-TX transmitter. Operating on Lenkeng’s ipcolor STREAM technology, this receiver converts the compressed IP data streams traveling through your network back into crisp, ultra-high-definition video and audio.

• ideo Output: Successfully outputs crisp 4K Ultra HD resolutions up to 4096×2160 @ 60Hz. It is fully backward compatible with lower resolutions like 1080p, and maintains compliance with HDMI 2.0 and HDCP 2.2 standards.
• Distance Capabilities: Directly extracts full 4K@60Hz video data from up to 120 meters (393 feet) away when tied to a standard Category 6 (Cat6) network run.
• Matrix Setup Scalability: Functioning inside a local area network through an off-the-shelf Gigabit network switch, you can map multiple receiver units to match your deployment. It handles configurations up to 256 distinct outputs, meaning you can display identical or different source content dynamically.
• IR Passback Tracking: Equipped with a 20kHz–60kHz IR receiving sensor port. Pointing a source remote at this receiver will relay the infrared commands back through the network switch straight to the media room source.
• Engineered for 24/7 Use: Housed in a compact, durable aluminium enclosure designed for passive cooling and longevity. Includes built-in lightning, surge, and ESD safety protection to preserve display components during power anomalies

Specifications

• Max Output Resolution: 4096×2160 @ 60Hz (4K UHD)
• Network Interface: RJ45 Ethernet Port (Requires 1Gbps Switch Layer)
• Audio Processing: Decodes LPCM 2.0 digital audio
• Power Consumption: Ultra-efficient, drawing ≤ 2.5W (Powered by included DC 5V/1A adapter)
• Chassis Weight: Compact at 154 grams
• Control Software Integration: Receives commands and switches active channel matrix routing through the mobile app
