Cudy Router 4G LTE CAT4 N150 Industrial Wi-Fi Dual-Sim IR02_EU

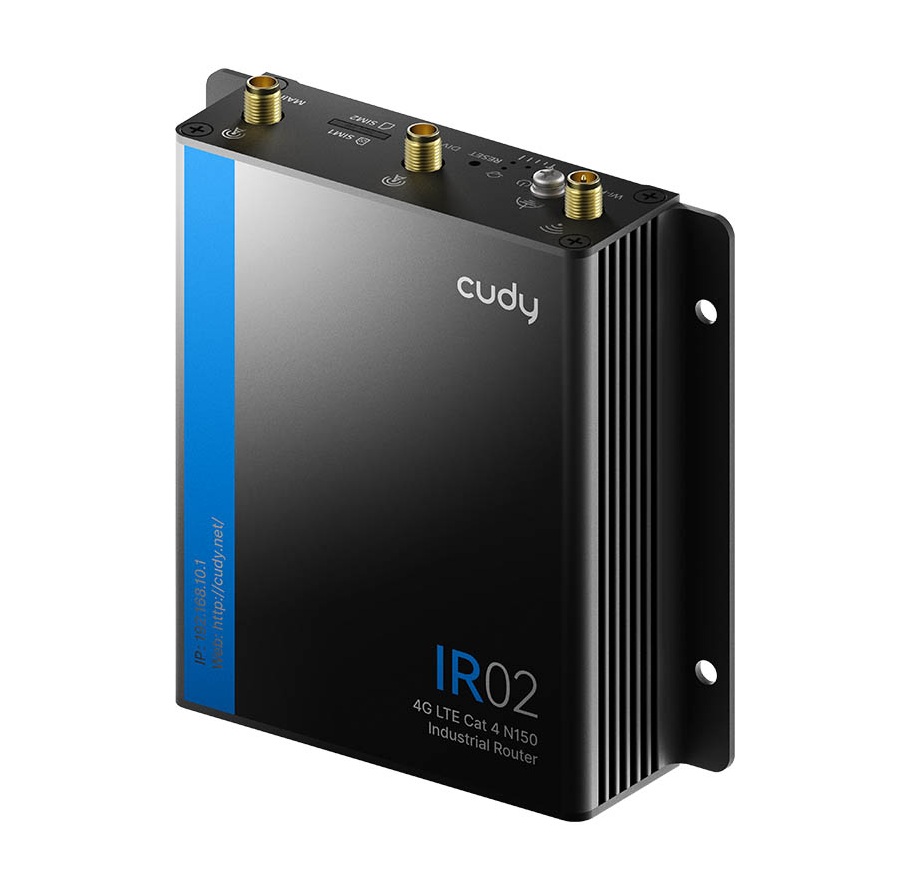

The Cudy IR02 V1.0 is an industrial-grade 4G LTE Cat 4 Wi-Fi router engineered to deliver robust, uninterrupted cellular connectivity in demanding M2M (Machine-to-Machine) and Industrial IoT environments. Housed in a heavy-duty IP30 metal casing with Level 3 EMC protection, it provides high temperature resistance and structural durability for deployment in harsh industrial settings like ATMs, automated kiosks, smart logistics, and remote surveillance.

• 4G LTE Cat 4 Speed: Delivers mobile download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps for efficient remote data transmission.
• Dual SIM Failover Redundancy: Features dual Nano-SIM slots with automatic failover to preserve network uptime in critical operations.
• Rugged Industrial Build: Built with an IP30-rated metal housing, wide operating temperature range (-40 °C to 75 °C), and resistance to shock and vibration.
• Versatile Industrial Interfaces: Equipped with terminal sockets supporting RS-232/RS-485 serial communication and configurable Digital Inputs/Outputs.
• Comprehensive VPN Protocols: Supports WireGuard, OpenVPN, IPsec, PPTP, and L2TP to establish secure end-to-end encrypted tunnels for sensitive remote data.
• Flexible Power Input: Features a 2-pin DC power input terminal supporting a wide range of 5 V to 36 V DC.

Specifications

• Processor: 580 MHz Single-Core MIPS24KEc
• Flash Memory: 16 MB NOR
• RAM: 128 MB DDR2
• Cellular Standard: 4G LTE Cat 4 (Max 150 Mbps DL / 50 Mbps UL)
• SIM Slots: 2 × Nano-SIM Slots (2FF)
• Cellular Antennas: 2 × Detachable External LTE Antennas (SMA Female, 1.5 m Cable)
• Wi-Fi Standard: IEEE 802.11n/b/g (Wi-Fi 4), 2.4 GHz
• Signal Rate: 2.4 GHz: Up to 150 Mbps
• Wi-Fi Antenna: 1 × Detachable External Antenna (RP-SMA Female)
• Ethernet Ports: 2 × 10/100 Mbps Fast Ethernet Ports (Configurable LAN/WAN)
• Industrial Interfaces: 1 × Serial Port (RS-232/RS-485 via 7-pin Terminal Block), 1 × Digital Galvanically Isolated Input, 1 × Relay Output
• VPN Client & Server Support: WireGuard, OpenVPN, IPsec, PPTP, L2TP
• Power Supply: 2-Pin DC Terminal Block (5 V to 36 V DC Input)
• Power Adapter: Included External Power Supply (12 V / 1 A)
• Power Consumption: 1.0 W (Idle), 7.0 W (Maximum)
• Ingress Protection & EMC: IP30 Rating, IEC/EN 61000-4 Level 3 EMC Protection
• Mounting Options: Wall-Mounting, DIN-Rail Mounting (Optional Adapter)
• Operating Temperature: -40 °C to 75 °C
• Storage Temperature: -40 °C to 85 °C
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 95% non-condensing
• Dimensions (W × D × H): 104.4 mm × 103 mm × 28.3 mm
• Device Weight: 218.6 g
