Reolink HUB Home 1 Lite

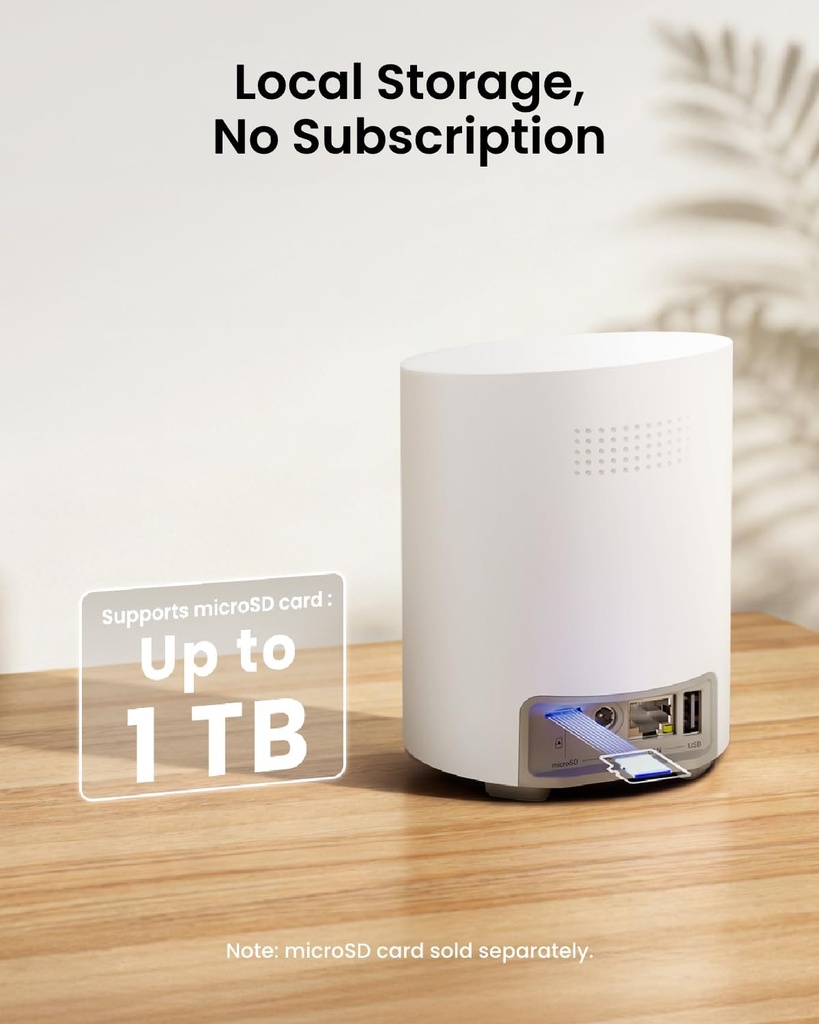

• Local Storage, No Monthly Fees
• Up to 1TB microSD Card Supported
• Up to 8 Reolink Cameras Supported
• AI-Powered Weekly Insight
• Reolink Battery-Powered Wi-Fi Cam/E Series/Lumus Recommended

Specifications

Compatibility

• Camera Supported : Up to 8 Cameras
• Compatible Device : Reolink Battery-Powered Wi-Fi Cameras & E Series & / Lumus Recommended

Storage

• Storage Comparison-Motion Recording Mode : Up to 1 year of local video storage for two battery-powered cameras, assuming each camera records 300 seconds per day.
• microSD Card Slot : Up to 1TB microSD card
• SATA : No
• 24/7 recording : Yes (fluent mode)
• Storage Comparison-Continuous Recording Mode : 1.5 days of video history when four 4k cameras are recording 24/7
• Storage Encryption : Protect privacy and anti-theft with advanced encryption features

Network

• Wireless Standard : IEEE 802.11 a/b/g/n/ac
• Operating Frequency : 2.4/5GHz
• Wireless Security : WPA/WPA2
• Interface
• HDMI : No
• USB : USB 2.0 (for data transfer)
• Speaker : Yes (up to 110dB)
• Ethernet : 10M/100M bit RJ45 port for WAN

Preview & Playback

• Live View/Playback Resolution : Up to 12MP
• Playback
• Smart playback /quick event history : Sub-1G
• Sub-1G Operating Frequency : No

System

• Power : DC 12V/1A
• Network Protocols
• TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP，onvif
• OS Supported
• PC: Windows, Mac OS; smartphone: iOS, Android
• Max. User Access : 11 users (1 admin account & 10 shared accounts)
• Smart Home : Google/Alexa

Working Environment

• Temperature : -10℃~+45℃
• Humidity : 10%~90%

Mechanical

• Dimensions : Ф94*127.8mm
• Weight : 220g
