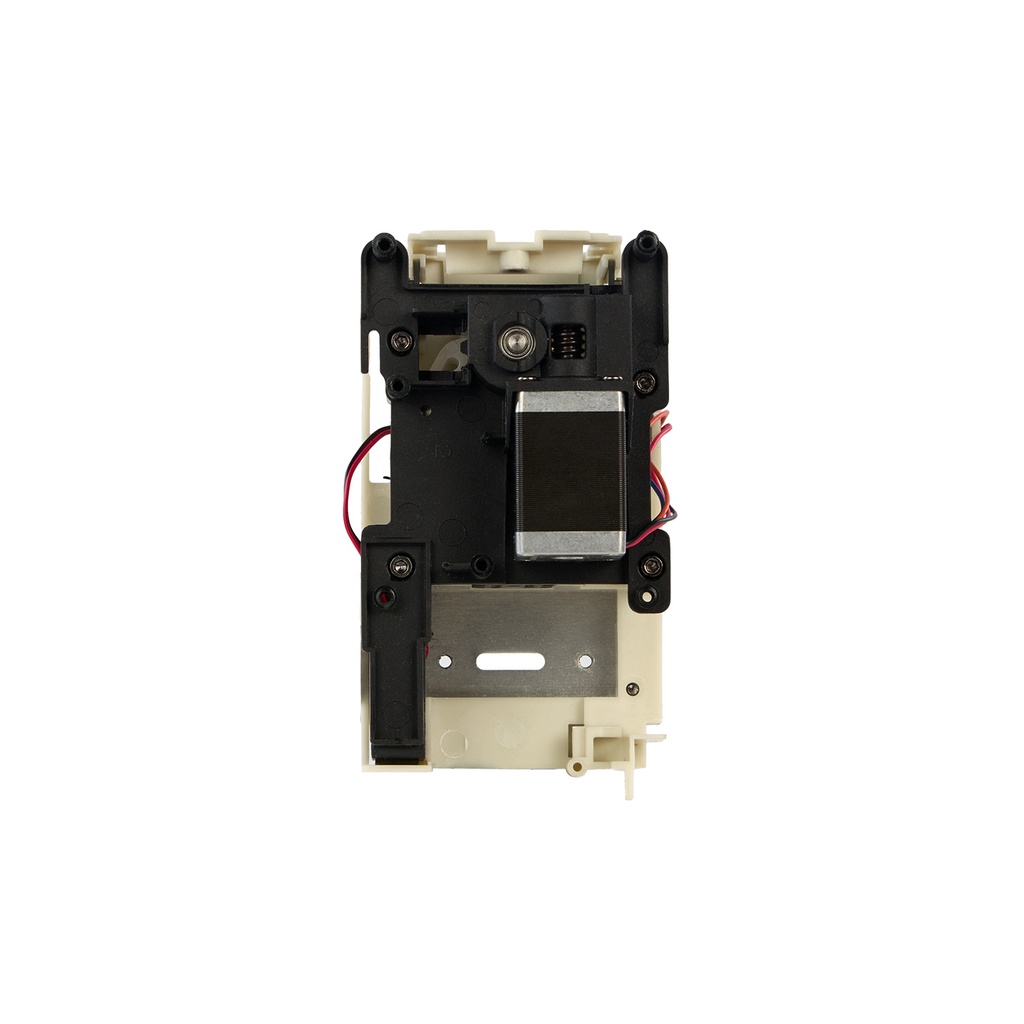

Anycubic SP Kobra X Series ACE GEN2 Shift Extruder

• The Anycubic Kobra X Series ACE GEN2 Shift Extruder is the mechanical gear-drive module housed inside the ACE GEN2 printhead. Designed specifically for high-speed, multi-color, and multi-material 3D printing, it acts as the dual-gear grip drive that feeds, retractions, and shifts control during filament loading and unloading operations.
• Dual-Gear Extrusion System: Utilizes hardened steel drive gears with aggressive tooth profiles to grip 1.75 mm filament tightly without slipping, ensuring precise volumetric flow during high-speed printing.
• Shift Mechanism for Multi-Color: Features an internal shifting/clutch mechanism designed to interface with the ACE multi-material unit. It allows the extruder gears to disengage or engage during filament purging, tip-cutting, and retraction cycles to prevent grinding.
• Hardened Steel Gear Drive: Built to handle both standard filaments (PLA, PETG) and abrasive composite materials (Carbon Fiber, Wood, Glow-in-the-Dark) without excessive gear tooth wear.Integrated Drive Tensioner: Features an adjustable tensioning screw/spring assembly to fine-tune gear gripping force for soft materials like TPU or rigid engineering plastics like ABS and ASA.
• Direct Printhead Integration: Mounts directly behind the S010401 cutter assembly and above the quick-release hotend, keeping the filament travel path minimal to reduce buckling.

Specifications

Technical Specifications

• Compatibility: Anycubic Kobra X / Kobra X Combo Series
• Drive Gear Material: Hardened stainless / alloy steel
• Filament Compatibility: 1.75 mm (PLA, PETG, ABS, ASA, TPU, Composites)
• Primary Function: Direct-drive filament feeding, retraction, and color-shift management
• Mounting Position: ACE GEN2 Printhead Core (between cutter & drive board)

Maintenance & Care Tips

• Clear Plastic Dust & Shavings: Over extended printing hours—especially during frequent tool-change retraction cycles—fine plastic dust can settle inside the gear teeth. Use compressed air or a small wire brush to clean out the drive gears periodically.
• Inspect Tension for TPU vs. Rigid Filaments: If you switch to soft TPU, back off the extruder tension slightly to prevent crushing the flexible strand. Re-tighten for rigid filaments like PLA or PETG to prevent gear slipping.
• Gear Lubrication: Keep a tiny drop of synthetic grease (such as PTFE/lithium grease) on the non-tooth gear pivot shafts. Avoid getting any oil or grease on the actual gripping teeth where the filament passes through.
