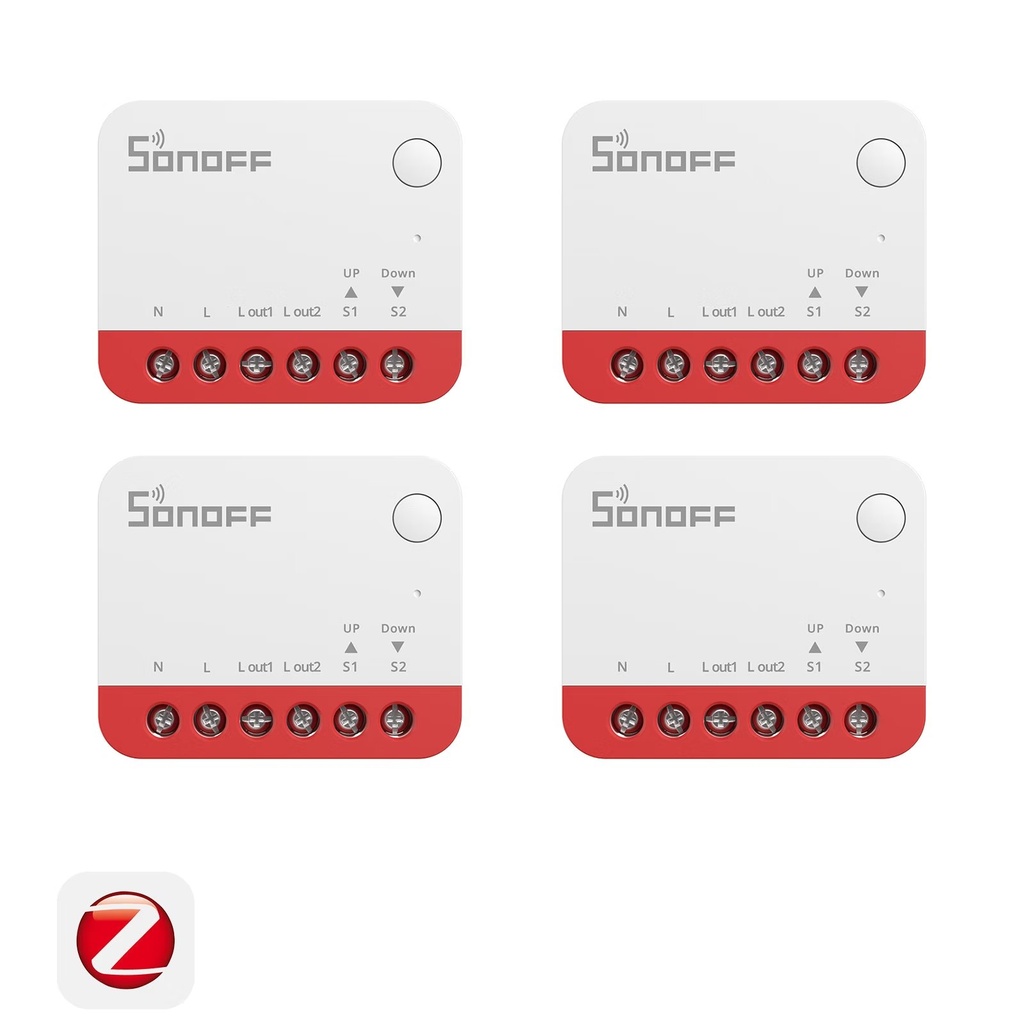

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack)

  • In-wall Zigbee 3.0 module for roller shutters, blinds and curtains
  • Open to an exact percentage with travel calibration
  • Motor load up to 1 A, keeps your wall switch
  • Local Zigbee scenes, works as a router
  • Tiny 39.5 × 33 × 16.8 mm
49.99 € 49.99 €
42.01 €
  • Brand
  • Colour
  • Wi-Fi
  • Color
  • Product Type
  • Current
  • Manufacturer
  • Model
  • Working Temperature
  • Casing Material
  • Product dimension
  • Net Weight
  • MCU
  • Applicable place
  • Wireless connectivity
  • Rating
  • App
Contact Us
 ​

MINI-ZBRBS is a compact Zigbee module that fits behind your existing up/down switch and makes motorised roller shutters, blinds or curtains smart. It drives motors up to 1 A, opens to an exact percentage after a quick calibration, keeps your wall switch working and runs scenes locally through your Zigbee hub.

Motor load
1 A max
Positioning
Exact %
Size
39.5 × 33 × 16.8 mm
Protocol
Zigbee 3.0 router

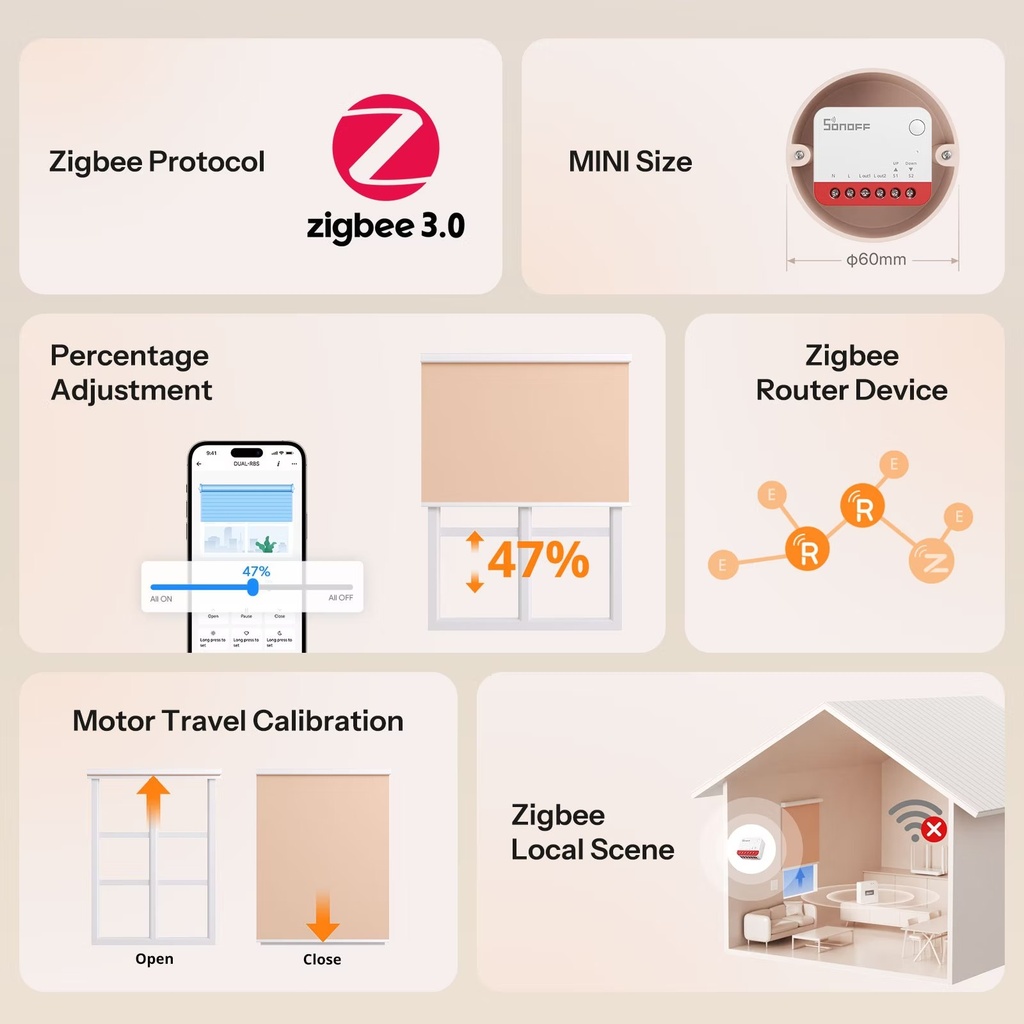

Main features

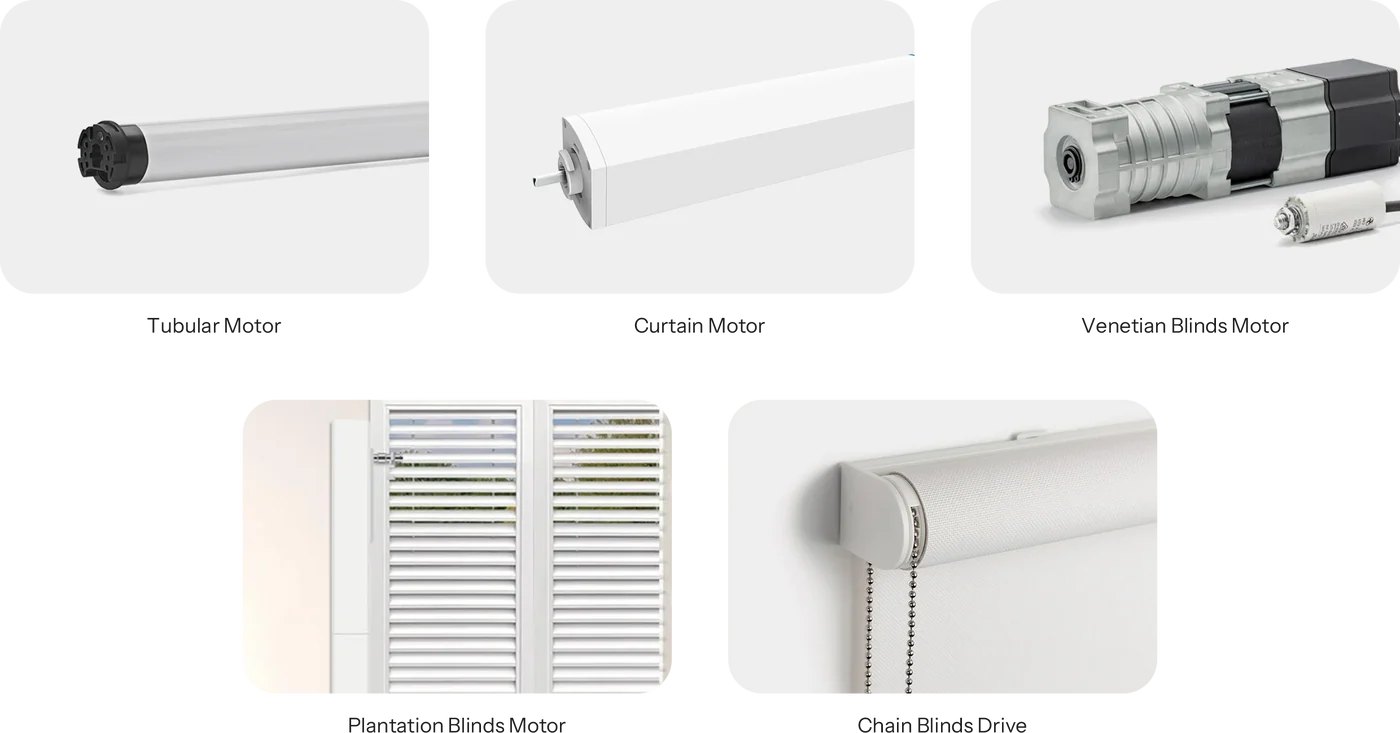

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Roller shutters, blinds, curtains
Any motorised shade

Roller shutters, blinds, curtains

Works with tubular motors for shutters, motorised blinds and curtain tracks up to 1 A.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Open exactly how you like
Percentage control

Open exactly how you like

Set the shutter to 30%, 50% or any position from the app or a scene.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Accurate position
Calibration

Accurate position

Travel calibration measures the motor run time so the position stays accurate and the motor lasts longer.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Always in control
Manual switch

Always in control

Your existing wall switch keeps working alongside app and voice control.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Stronger mesh network
Zigbee router

Stronger mesh network

Mains-powered, it extends your Zigbee network, and local scenes run even without internet.

Compatibility

Zigbee 3.0SONOFF NSPanel ProSONOFF iHostZigbee Bridge Pro / UltraHome Assistant (ZHA, Zigbee2MQTT)Amazon Alexa (Echo with Zigbee)SmartThingsApple Home (Matter Bridge)
Good to know

Requires a Zigbee 3.0 gateway (not included), such as the SONOFF Zigbee Bridge Pro, NSPanel Pro, iHost or a ZBDongle with Home Assistant. A neutral wire is required. Mains installation: must be wired by a qualified electrician with the power switched off.

Specifications

ModelMINI-ZBRBS
TypeSmart Roller Shutter Switch
MCUEFR32MG21
Rating100-240V~ 50/60Hz 1A Max
WirelessZigbee 3.0
Net weight25.1g
Dimensions39.5x33x16.8mm
ColourWhite
Casing materialPC
UseIndoor
Working temperature-10℃~40℃
Working humidity5-95%RH, non-condensing
eWeLink
Control it from your phone
Set up and manage it with the free eWeLink app: remote control, timers, scenes and voice assistants.

Description

MINI-ZBRBS is a compact Zigbee module that fits behind your existing up/down switch and makes motorised roller shutters, blinds or curtains smart. It drives motors up to 1 A, opens to an exact percentage after a quick calibration, keeps your wall switch working and runs scenes locally through your Zigbee hub.

Motor load
1 A max
Positioning
Exact %
Size
39.5 × 33 × 16.8 mm
Protocol
Zigbee 3.0 router

Main features

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Roller shutters, blinds, curtains
Any motorised shade

Roller shutters, blinds, curtains

Works with tubular motors for shutters, motorised blinds and curtain tracks up to 1 A.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Open exactly how you like
Percentage control

Open exactly how you like

Set the shutter to 30%, 50% or any position from the app or a scene.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Accurate position
Calibration

Accurate position

Travel calibration measures the motor run time so the position stays accurate and the motor lasts longer.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Always in control
Manual switch

Always in control

Your existing wall switch keeps working alongside app and voice control.

SONOFF Zigbee Roller Shutter Switch MINI-ZBRBS (4-Pack) – Stronger mesh network
Zigbee router

Stronger mesh network

Mains-powered, it extends your Zigbee network, and local scenes run even without internet.

Compatibility

Zigbee 3.0SONOFF NSPanel ProSONOFF iHostZigbee Bridge Pro / UltraHome Assistant (ZHA, Zigbee2MQTT)Amazon Alexa (Echo with Zigbee)SmartThingsApple Home (Matter Bridge)
Good to know

Requires a Zigbee 3.0 gateway (not included), such as the SONOFF Zigbee Bridge Pro, NSPanel Pro, iHost or a ZBDongle with Home Assistant. A neutral wire is required. Mains installation: must be wired by a qualified electrician with the power switched off.

Specifications

ModelMINI-ZBRBS
TypeSmart Roller Shutter Switch
MCUEFR32MG21
Rating100-240V~ 50/60Hz 1A Max
WirelessZigbee 3.0
Net weight25.1g
Dimensions39.5x33x16.8mm
ColourWhite
Casing materialPC
UseIndoor
Working temperature-10℃~40℃
Working humidity5-95%RH, non-condensing
