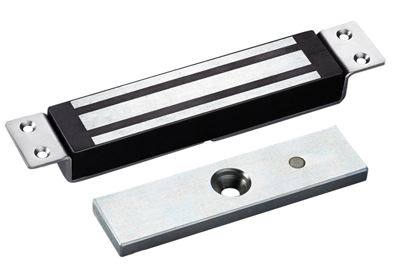

Zudsec Concealed Electromagnetic Lock ZDL-350C
-
Lock Type
-
Product Type
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Input voltage DC12V、or DC24 (can be customized) Holding Force: 350Kgs(800Lbs) Fail-safe type (Power to lock): Power-on to lock, Power-off to open). Suitable for : Wooden door , Glass door ,Metal door , Fireproof door Installation : Concealed Mount Power consumption: 12V/320mA Delay time:0~9 seconds Surface Temp: ≤+20°C Operating Temp: 10~+55°C(14-131F) Suitable Humidity: 0~90% Dimension：252×50.5×29mm(Body) 160×44×11mm(Magnet) Weight: 2.1Kgs
Specifications:
Lock Type: Electromagnetic
Product Type: Lock
Description
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Input voltage DC12V、or DC24 (can be customized) Holding Force: 350Kgs(800Lbs) Fail-safe type (Power to lock): Power-on to lock, Power-off to open). Suitable for : Wooden door , Glass door ,Metal door , Fireproof door Installation : Concealed Mount Power consumption: 12V/320mA Delay time:0~9 seconds Surface Temp: ≤+20°C Operating Temp: 10~+55°C(14-131F) Suitable Humidity: 0~90% Dimension：252×50.5×29mm(Body) 160×44×11mm(Magnet) Weight: 2.1Kgs
Specifications:
Lock Type: Electromagnetic
Product Type: Lock
Specifications
| Lock Type | Electromagnetic |
| Product Type | Lock |
