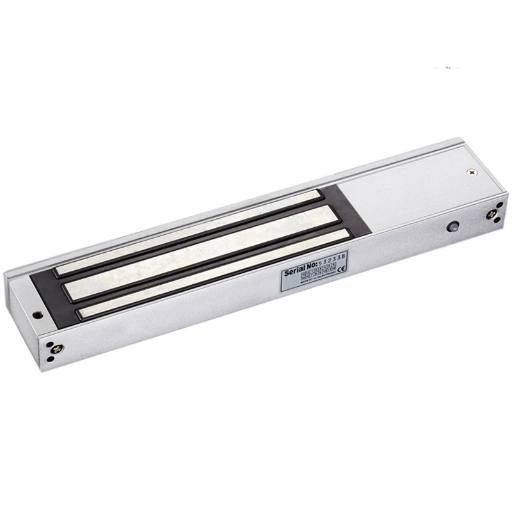

Zudsec Electromagnetic Lock ZDL-350ST
-
Lock Type
-
Product Type
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Input voltage ：DC12V、or DC24 (can be customized) Holding Force : 350Kgs(800Lbs) Fail-safe type (Power to lock) : Power-on to lock, Power-off to open). Suitable for : Wooden door , Glass door ,Metal door , Fireproof door Power consumption : 12V/320mA; 24V/250mA Surface Temp : ≤+20°C Operating Temp : 10~+55°C(14-131F) Suitable Humidity : 0~90% ZDL-350 :Dimension：240×56×29mm(Body); 160×44×11mm(Magnet) With Signal Feedback(NO /NC /COM) + Timer(0-20 seconds adjustable)
Specifications:
Lock Type: Electromagnetic
Product Type: Lock
Description
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Input voltage ：DC12V、or DC24 (can be customized) Holding Force : 350Kgs(800Lbs) Fail-safe type (Power to lock) : Power-on to lock, Power-off to open). Suitable for : Wooden door , Glass door ,Metal door , Fireproof door Power consumption : 12V/320mA; 24V/250mA Surface Temp : ≤+20°C Operating Temp : 10~+55°C(14-131F) Suitable Humidity : 0~90% ZDL-350 :Dimension：240×56×29mm(Body); 160×44×11mm(Magnet) With Signal Feedback(NO /NC /COM) + Timer(0-20 seconds adjustable)
Specifications:
Lock Type: Electromagnetic
Product Type: Lock
Specifications
| Lock Type | Electromagnetic |
| Product Type | Lock |
