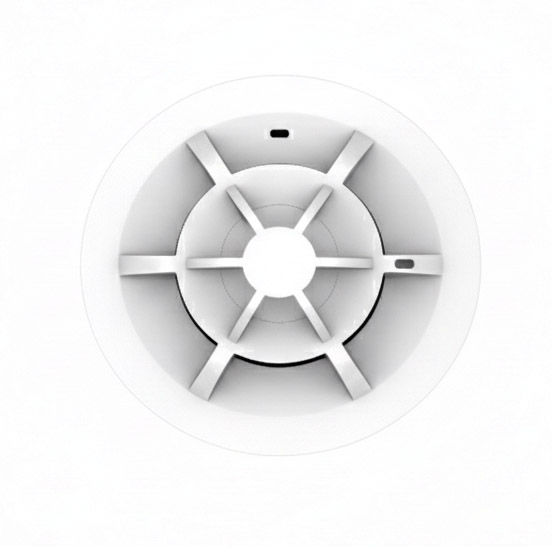

Dahua Addressable Fire Alarm Detector without Base (Smoke & Heat) HY-1320
, ,

Dahua Addressable Fire Alarm Detector without Base (Smoke & Heat) HY-1320

15,00 €

  • Convenient wiring: Two-wire, polarity-free
  • Reliable communication: Built-in microprocessor, stable performance
  • Ultra-low power consumption: Ultra-low monitoring current and alarm  current
  • Detection performance: Split-spectrum optical smoke sensor and sensitive thermistor
  • Designed in accordance with EN54-5 and EN54-7 standards
SKU: 25846 Categories: , , Brand:
  • Power : 24 VDC
  • Current: Monitoring current: ≤150 μA; Alarm current: ≤240 μA
  • Indicator : Red Indicator:/Polling: Flashes every 6 seconds/Alarm: Remains lit/Fault: Flashes every 2 seconds
  • Alarm Threshold for Heat Detection : A2R (54 °C to 62 °C) (129 °F to 144 °F)
  • Wiring : Two-wire, polarity-free
  • Addressing Method : Electrical encoder
  • Address Range : 1–254
  • Communication Distance : ≤1500 m (4921.26 ft)
  • Operating Temperature : –10 °C to +50 °C (+14 °F to +122 °F)
  • Storage Temperature : –20 °C to +65 °C (–4 °F to +149 °F)
  • Operating Humidity : ≤95% RH (no condensation)
  • Color : White
  • Dimensions (with Base) : Φ100 mm × 68.7 mm (Φ3.00" × 2.70")
  • Weight (with Base) : 106.3 g (0.23 lb)
  • Compliance Standard : EN54-5; EN54-7
