- Model: ProArt PA401 Wood Edition (Tempered Glass Panel)
- Form Factor: Mid-Tower
- Motherboard Support: ATX, Micro-ATX, Mini-ITX
- Dimensions (W x H x D): 225 mm x 503 mm x 412 mm
- Weight: 8.61 kg
- Materials: FSC®-Certified Ash Wood, Steel, Plastic, Tempered Glass
- Expansion Slots: 7
- Drive Bays:
- 2 x 2.5-inch Dedicated SSD Bays
- 2 x 2.5-inch / 3.5-inch Combo Bays
- Radiator Support:
- Top: 120 mm, 140 mm, 240 mm
- Cooling Fan Support:
- Front: 2 x 160 mm or 2 x 140 mm (2 x 160 x 32 mm PWM fans pre-installed)
- Top: 2 x 120 mm or 2 x 140 mm
- Rear: 1 x 120 mm (1 x 120 mm PWM fan pre-installed)
- Maximum GPU Length: 315 mm (Supports horizontal and vertical layout mounting)
- Maximum CPU Cooler Height: 160 mm
- Maximum PSU Length: 170 mm
- Front I/O Ports:
- 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps)
- 2 x USB 3.2 Gen1 Type-A
- 1 x Fan Speed Control Button (2-Section PWM)
- 1 x Power & Reset Button Lock Latch
- 1 x 3.5 mm Audio Combo Jack
- Hardware Ecosystem Hub: Integrated 5-port PWM Fan Hub
- Dust Management: Front and bottom high-density dust filters

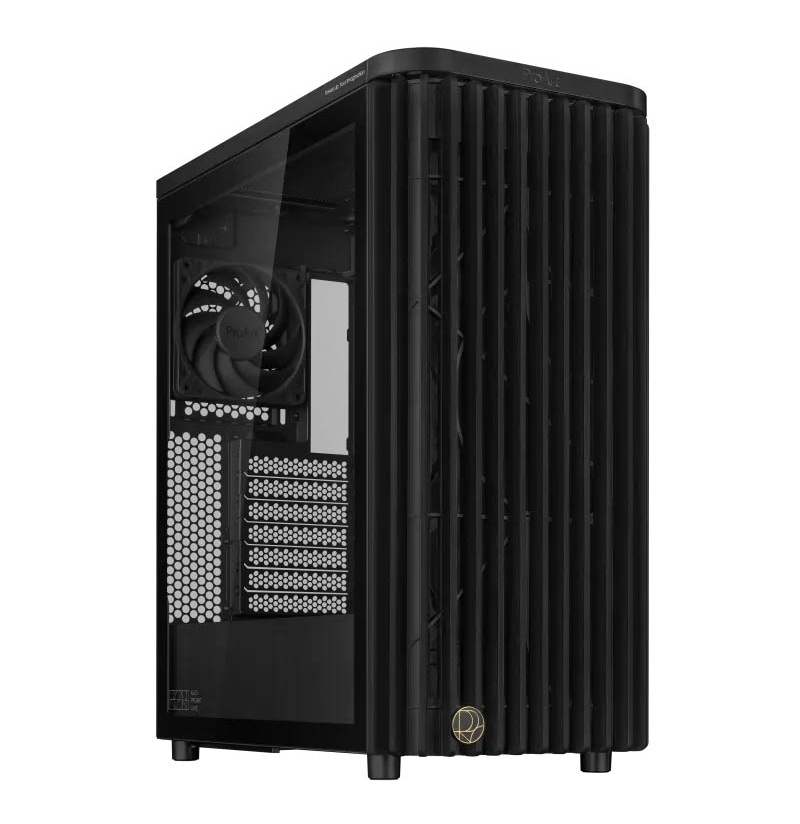

ASUS PC Case ProArt ATX Ash Wood Front Panel Tempered Glass Side Panel 3x Pre-Installed Fans Type-C PA401 Wood Edition Black TG
149,00 €
The ASUS ProArt PA401 Wood Edition is a premium, beautifully crafted mid-tower chassis tailored for digital creators, engineers, and professionals seeking a more compact, space-efficient alternative to full-tower setups without compromising on elegance or cooling prowess. Fusing a minimalist, organic design with highly efficient thermals, this edition features an open front grille with 33% porosity accented by durable, FSC®-certified ash wood slats that undergo a meticulous six-stage thermowood treatment. Equipped with two massive 160 mm front ring-blade intake fans and a 120 mm rear exhaust fan, it ensures superior, low-noise airflow for prolonged design workloads. A premium tempered glass side panel provides a crystal-clear look at internal components, effortlessly uniting studio-grade tech with a sophisticated, natural aesthetic.
- Naturally Crafted Ash Wood: Accented with FSC®-certified ash wood that has undergone a six-stage thermowood treatment to withstand heat, humidity, and insects while adding a high-end organic texture.
- Air Superiority In Compact Form: Built with an 18 mm open-grille front panel featuring a high 33% porosity, ensuring a consistent and unhindered stream of fresh air to core components.
- Massive 160 mm Custom Cooling: Features two pre-installed, extra-thick 160 x 32 mm front ring-blade fans alongside a 120 mm rear exhaust fan for massive, low-vibration airflow straight out of the box.
- Creator-Focused Control & Security: Features an integrated physical button lock that prevents accidental presses of the Power and Reset buttons mid-render, along with a secure side panel latch to prevent unauthorized intrusion.
- Integrated Multi-Fan Hub: Outfitted with a dedicated 5-port PWM fan hub, streamlining cable management and allowing system fans to automatically adjust speed depending on intensive rendering scenarios.
- Builder-Friendly Accessibility: Streamlines installation with a detachable rear power supply bracket that allows the PSU to slide straight in from the back, tool-free 3.5-inch drive cages, and external rear cable routing clips.
